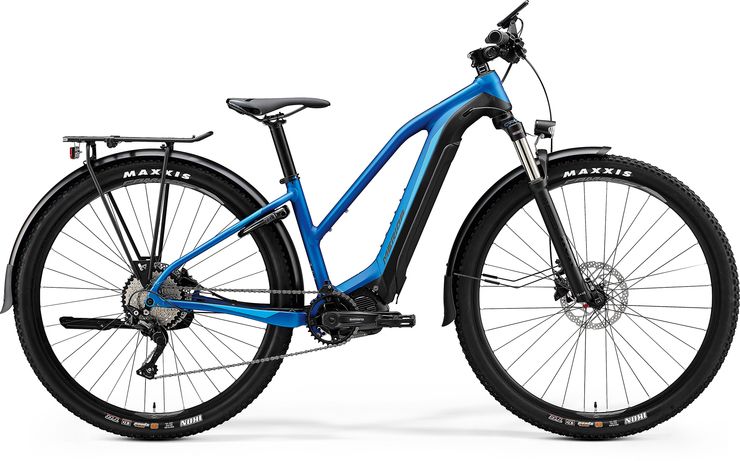

The MERIDA eBIG.TOUR EQ is the perfect e-mountain bike hardtail for people who are looking for a trekking bike with all its benefits of a comfortable and upright seating position, fenders as well as lights and carrier, but don’t want to miss out on the comfort and safety a 100mm mountain bike suspension fork and wider 2.2″ MTB tyres can offer. The eBIG.TOUR is ideal for relaxed cycling tours, day trips or for commuting in any weather condition.

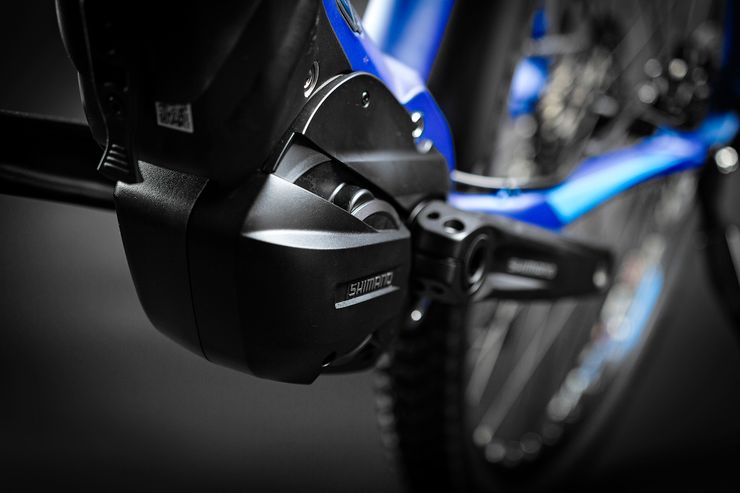

Maximum riding fun at any performance level was the key focus in the design and concept of the Shimano STePS systems. The motors are optimised with regards to intuitive handling and despite their impressive performance, deliver the most natural and organic riding experience. The latest versions have seen additional updates of the firmware to match their intended field of application even more. The motor almost immediately responds to any pressure being applied through the pedals which hugely contributes to the intuitive handling and the agility of the system. An equally important feature of the motor is that it also withdraws any assistance at once when pedal pressure is reduced. Based on the compact size of the system it can be perfectly integrated into the overall frame design.
Shimano battery (integrated)
The new Shimano BT-E8035 (504Wh) has a very compact size design which is optimised for the integrated use in the down tube. The battery is equipped with modern, up-to-date battery cells, which are very durable and long lasting. Even after 1000 charging cycles it still has 60% of the capacity, which is currently the best in its class. The battery is IPX5 level and water projected and can withstand water being projected onto it by a water jet with an up to 6.3mm nozzle. The aluminium casing is used for better heat transfer, and it is stronger than plastic. Furthermore, it has a high-quality appearance.

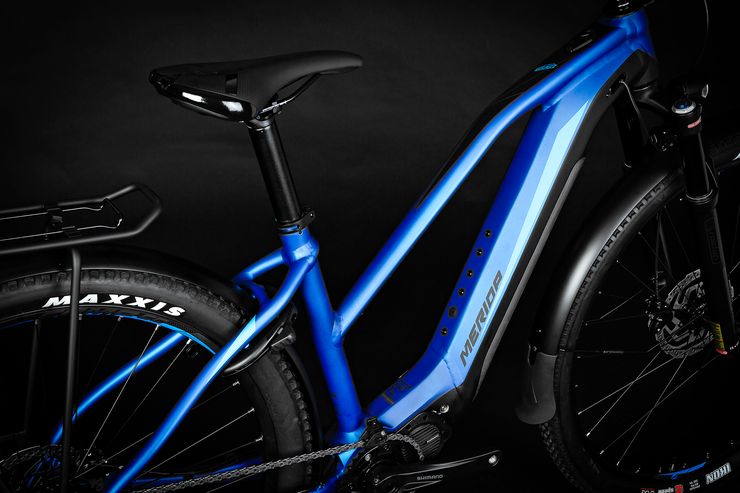

Le poids système d’un vélo est composé du poids du vélo, du cycliste et des bagages. Le poids système maximal autorisé pour les modèles eBIG.NINE et eBIG.TOUR est de 140 kg. Comme un vélo électrique est plus lourd qu’un vélo sans assistance et qu’il facilite le transport de davantage de bagages, il est impératif que le poids maximal autorisé augmente également. L’ensemble des vélos électriques MERIDA sont soumis à une procédure de tests rigoureuse, spécifique à chaque vélo, qui simule l’augmentation de la puissance et de la charge pour garantir le plus haut niveau de sécurité.

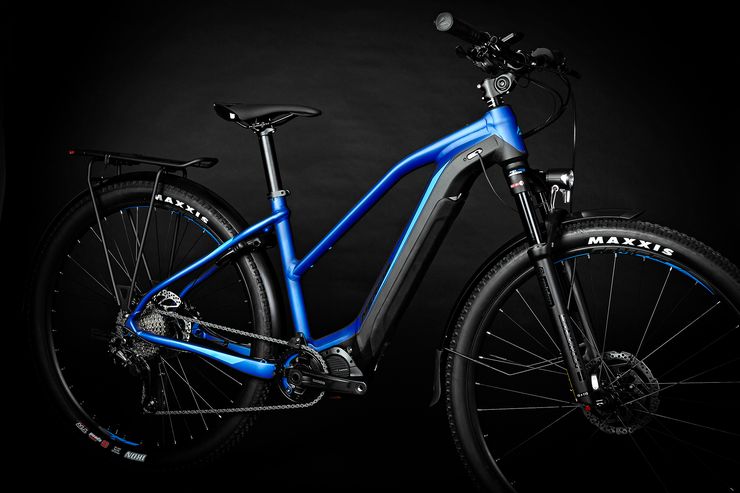

Optimised centre of gravity
Based on the central position of the battery in the lower part of the down tube and the low position of the Shimano motor, we were able to achieve an optimum centre of gravity. The low and well-positioned centre of gravity provides the bike with outstanding riding characteristics which are extremely important in particular when fully loaded.

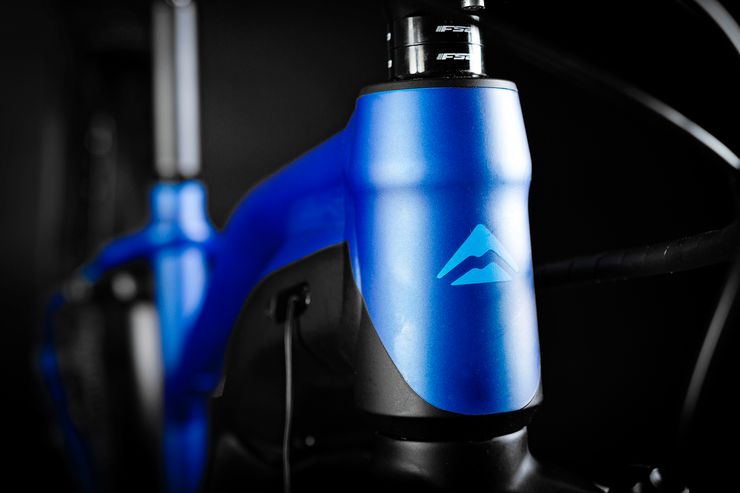

Excellent frame stiffness
The outstanding frame stiffness also has a strong influence on the riding characteristics of bikes with an integrated battery. The tapered head tube, with the large 1.5″ to 1.5″ diameter, 34.9mm seat tube the diecast motor bracket as well as the 148 x12mm rea through axle all contribute to achieving a safe and precise riding experience.

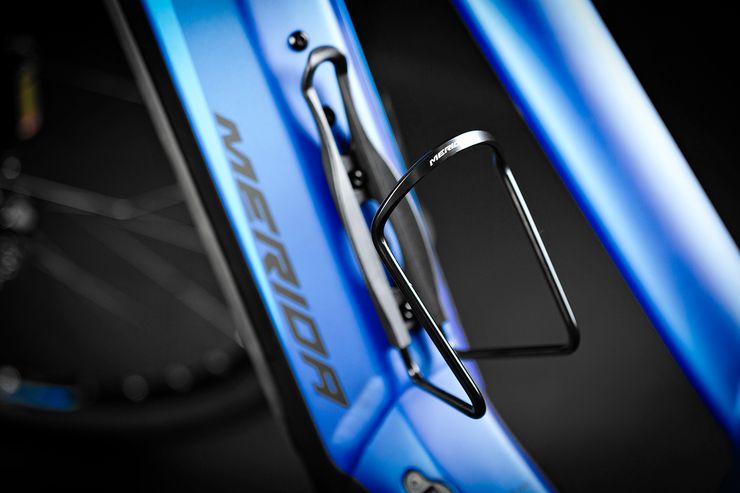

Water bottle mounts
The eBIG.TOUR EQ frame offers the possibility to fit a water bottle or further accessories like a lock or pump in two different positions. One is on the top of the down tube, while a second is below the top tube. This gives the rider, besides the possibility to mount bottle cages, the option to mount for example a folding-lock or pump bracket.

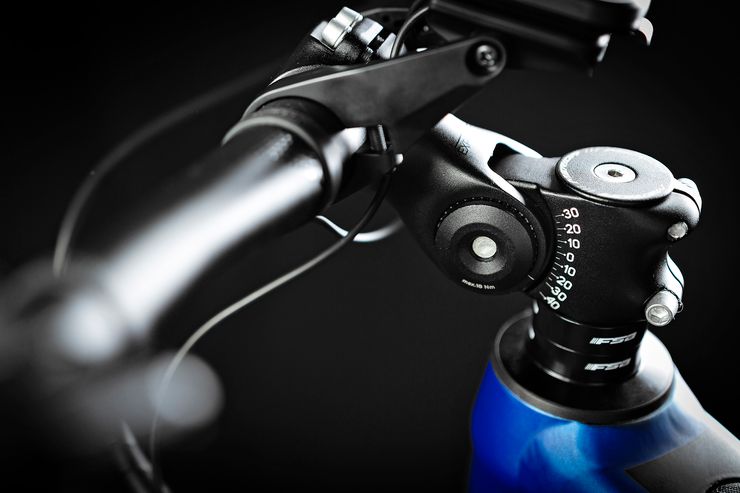

MERIDA EXPERT CT adjustable stem
Our in-house components are designed and constructed with the demands of the individual bike type in mind. The MERIDA EXPERT CT stem is fully adjustable, allowing the rider to find the ideal angle for the perfect seating position. Furthermore, it surpasses all MERIDA e-bike specific tests which are more demanding than the legal requirements. All components are tested and certified for a system weight of up to 140kg.

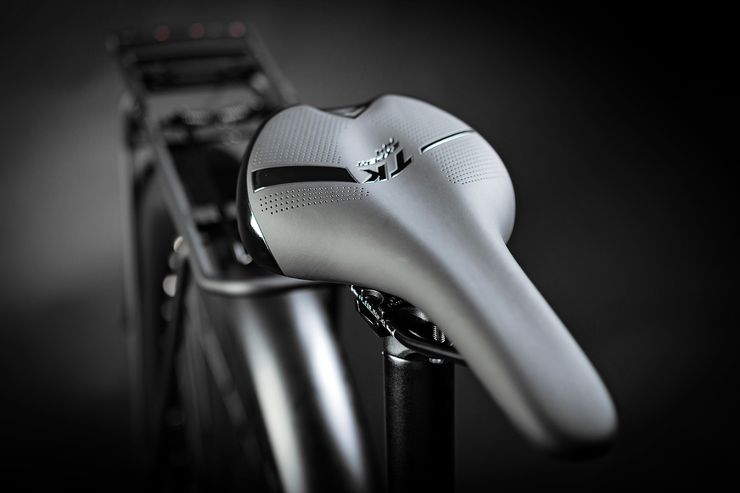

MERIDA EXPERT TK saddle
With the new generation of MERIDA trekking saddles, the focus was clearly on comfort. The riding position on a trekking bike differs mostly in the more upright sitting position, which means that there is more pressure on the saddle. That’s why trekking saddles are a little wider and also have sicker padding compared to sportive saddles. Another nice feature at this saddle is the V-Mount interface, which allows you to mount accessories directly on the baseplate of the saddle

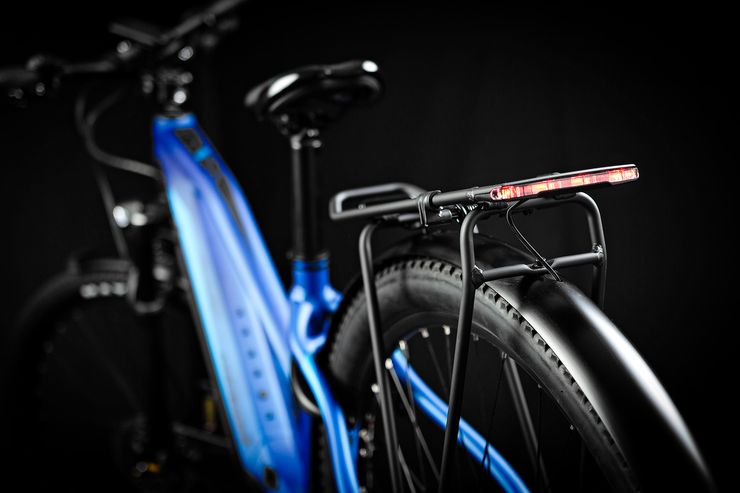

MERIDA MIK carrier with Herrmans H-Cargo light
In cooperation with MIK (Mounting Is Key) we have developed the new and modern rear carrier with a seamlessly integrated Herrmans light. MIK is an open carrier interface which is used by many bicycle manufacturers for direct attachment of various accessories like baskets and/or bags to the carrier. The carrier is equipped with a spring clamp, which can be easily removed in case it’s not needed. The Herrmans H-Cargo light is integrated neatly into the carrier rear end. The modern LED light has a 220° beam which is visible up to 350m away and features a stand light function for more safety.
